Tutorial: Creating Wireframe Out of 3D Geometry

Afanche3D provides a great tool to create 3D wireframe out of any geometry. In order to do it, you need to select a 3D geometry first. The following picture shows a 3D head model:

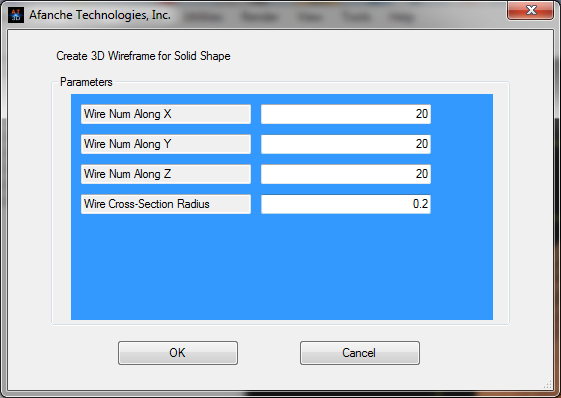

After the 3D object is selected, go to "Model" menu, click "Conversion", click "Create Wireframe for Shape", you will see the following popup dialog:

You can change parameters to control how to generate wireframe. For this example, we chose the numbers shown in the dialog. Then click "OK" button. After that, the newly created 3D wireframe is shown in 3D canvas. For this particular example, It looks like the following picture:

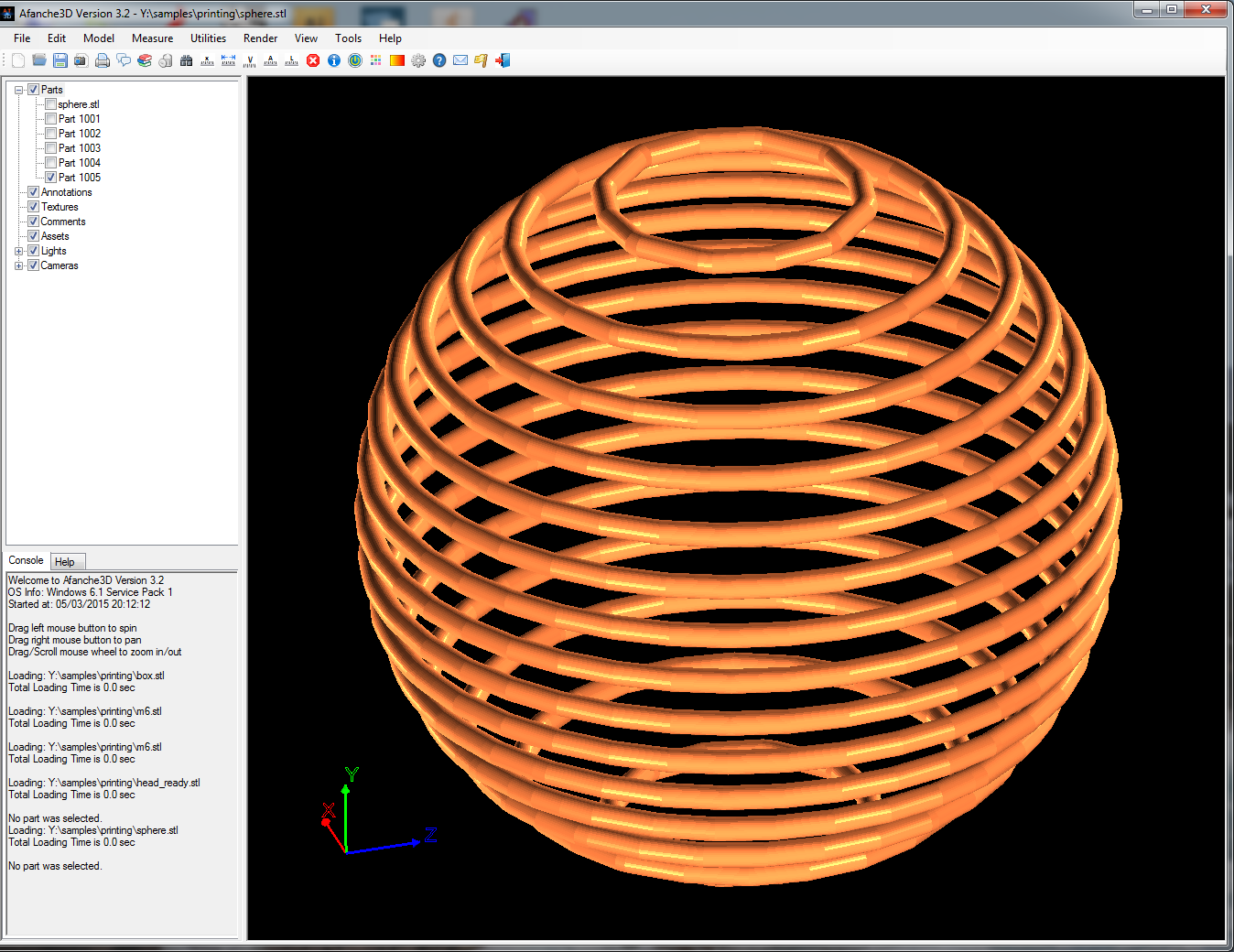

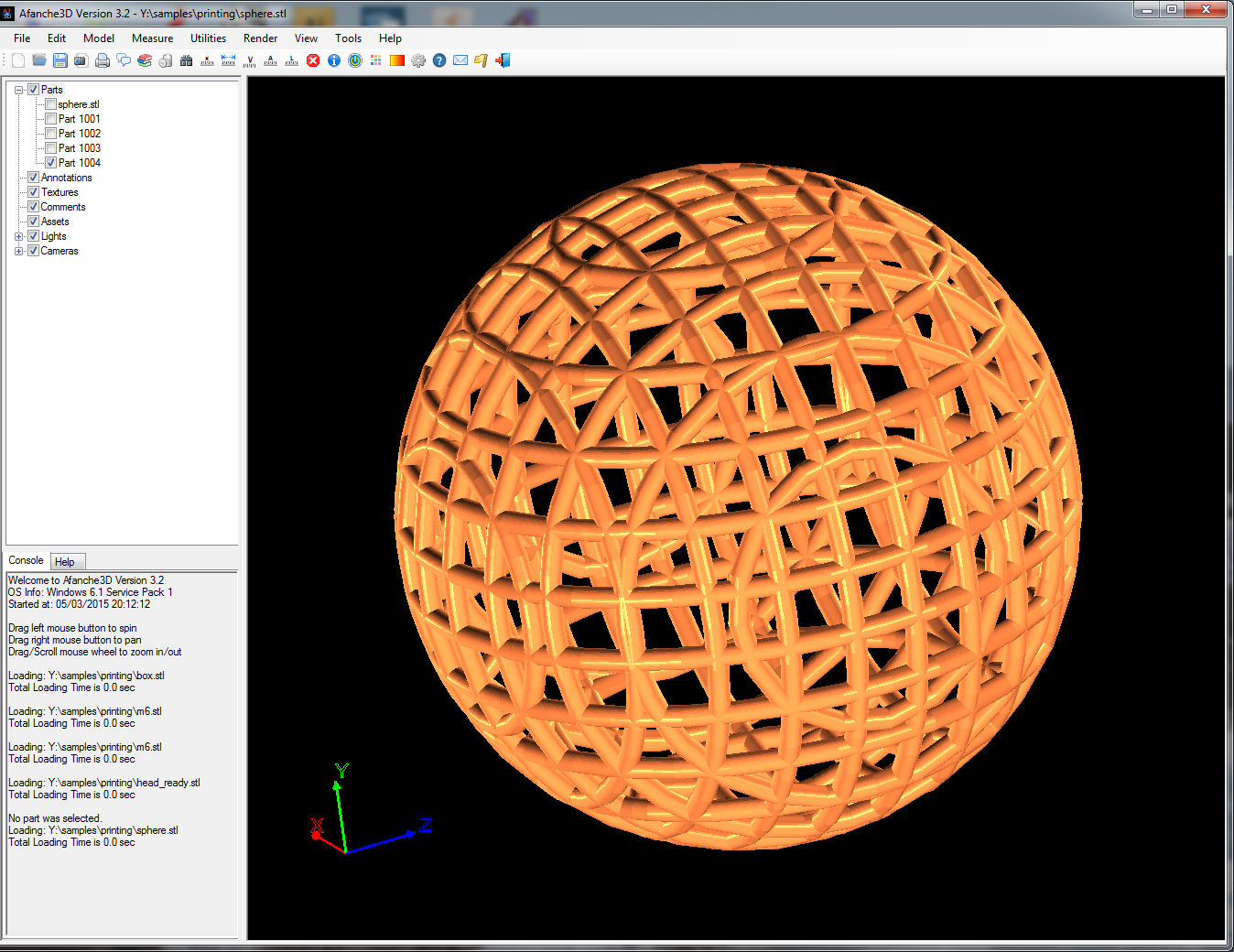

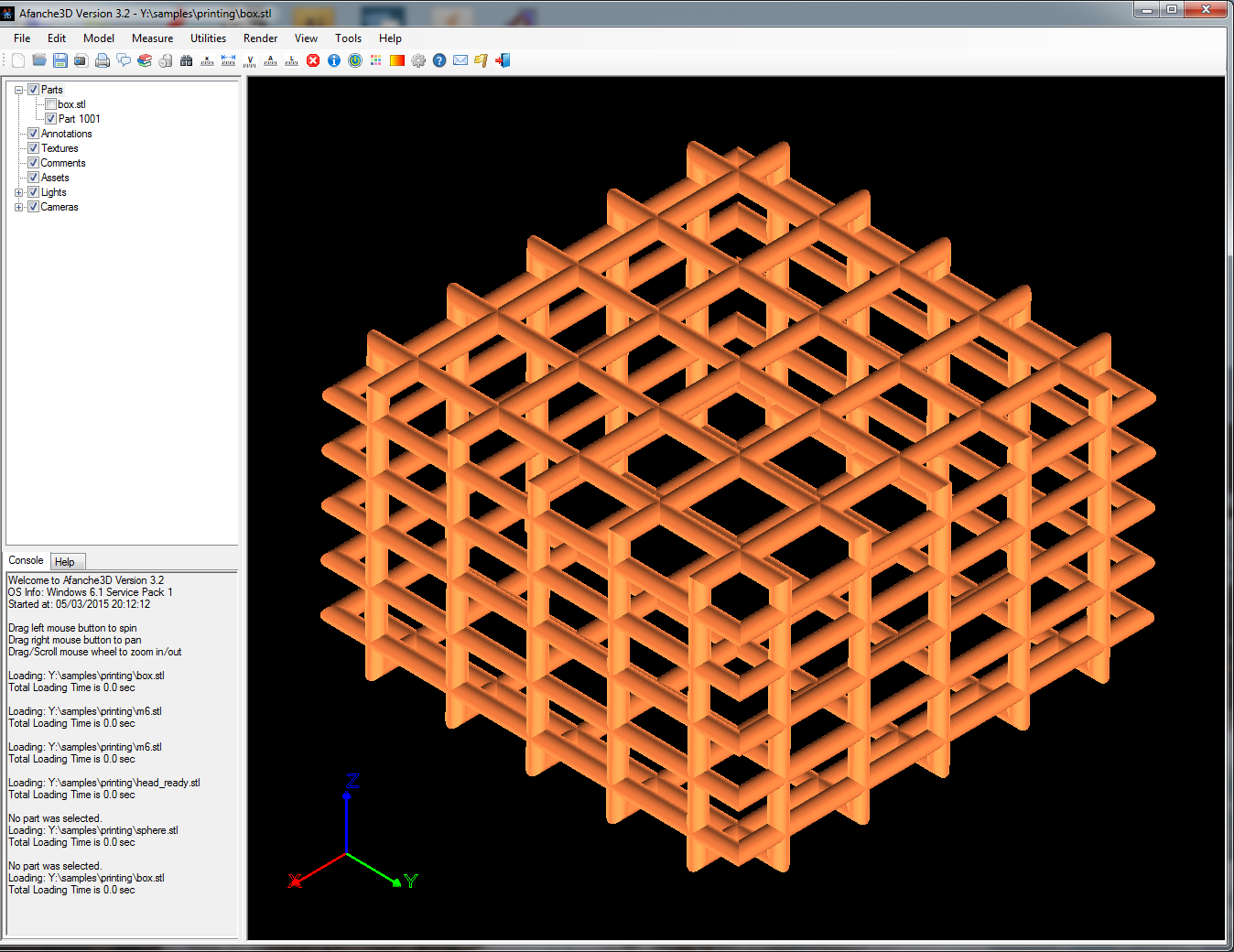

The following pictures show wireframes generated for sphere and box





Video demo of the tutorial
